Voyager is a new series of leisure trailer that sports economy and maximim space utilisation.

The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid.

Added stability when parked, comes from two extension legs, that neatly tuck away. It features superb space utilisation getting more into less. This trailer has the following:

Features

• A deep body of over 500 mm for those larger items
• Body constructed of zinc galvanised sheet steel

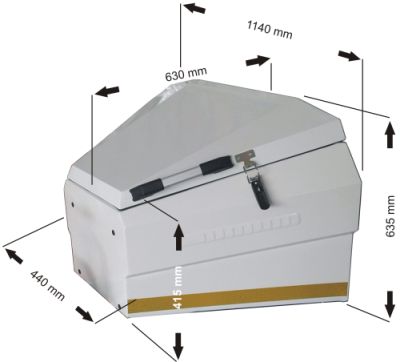

• A large nosecone for additional storage
• 14 inch wheels for rough terrain, plus spare wheel
• Two extension legs providing stability on uneven ground
• A robust cycle rack for carrying four bicycles
• A wide rear tailgate for access to the trailer interior
• A gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior
• 6 inch adjustable jockey wheel
• 36 inch 6 blade leaf springs
• 8 ring holders for securing luggage inside
• Very sturdy coupler
• Strong construction using 30% more steel than standard trailers
• A long life 1250kg axle
• Numberplate twin light fitting
• Aluminium handles
• New multi-function LED light
• New numberplate holder

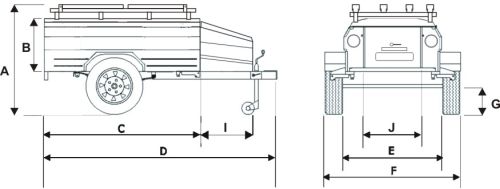

Dimensions
A    Height (over all) 1255 mm
B    Height (side) 500 mm
C    Length (body) 2105 mm
D    Length (over all) 3055 mm
E    Width (inside) 1135 mm
F    Width (over all) 1575 mm
G    Ground Clearance 460 mm
I    Length (nose-cone) 650 mm

Technical Info
Tare Mass 280 kg
GVM 750 kg
Pay Load 470 kg
Axle Length 1400 mm
Axle Capacity 1250 kg
Leaf Springs 8 Blade 36 inch
Wheels 195 x 14 inch

Doors
Door (rear - height) 500 mm
Door (rear - width) 620 mm (J)

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
